PVC Foam Board

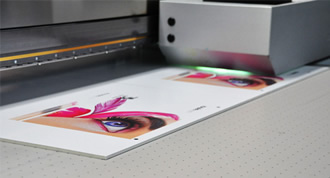

PVC foam board is a widely used advertisement material. With its water-proof and matte surface, PVC foam board can be used as UV print, digital print and screen print for indoor and outdoor use. White is the most popular color, we also have other color for your choice like: green, blue, red, black, yellow and so on.
Listed below are some of the typical characteristics of PVC foam board:
1).free foamed structure.
2).Light weight, water proof, fire retardant and self-extinguishing.
3).Sound insulation, heat insulation, noise absorption, heat preservation and anti-corrosion.
4).Tough, rigid with a high impact strength, not easy to age and can keep its color for long time.
5).Interior and exterior applications.



Application:

Advertisement (printing), Sign boards, display boards, etc..



Configurations of white PVC foam sheet:

Thickness (mm) 1220 x 2440 1220 x 3050 1560 x 3050 2050 x 3050
    1    ●    ●      ●    ●
    2    ●    ●    ●    ●
    3    ●    ●    ●    ●
    5    ●    ●    ●    ●
    6    ●    ●     ●    ●
    8    ●    ●    ●    ●
    10    ●    ●    ●    ●
    13    ●    ●    ●
    15    ●    ●    ●
    19    ●    ●    ●
    20    ●    ●    ●
    25    ●    ●
    30    ●    ●

Notice : Other size and thickness request please contact our sales for detail.

Tolerances

1) ±2mm on width. 2) ±5mm on length. 3) ±5% on sheet thickness.



Physical properties

 Properties  Units  Average Result
 Apparent density   g/cm3  0.45-0.8
 Pulling strength  MPa  ≥13
 Elongation at tear  %  ≥15
 Bending strength  MPa  ≥20
 Compressive strength  MPa  >3
 Compressive stress at 30%  MPa  >7
 Impact strength  KJ/m2  10
 Shore D Hardness  Value  60
